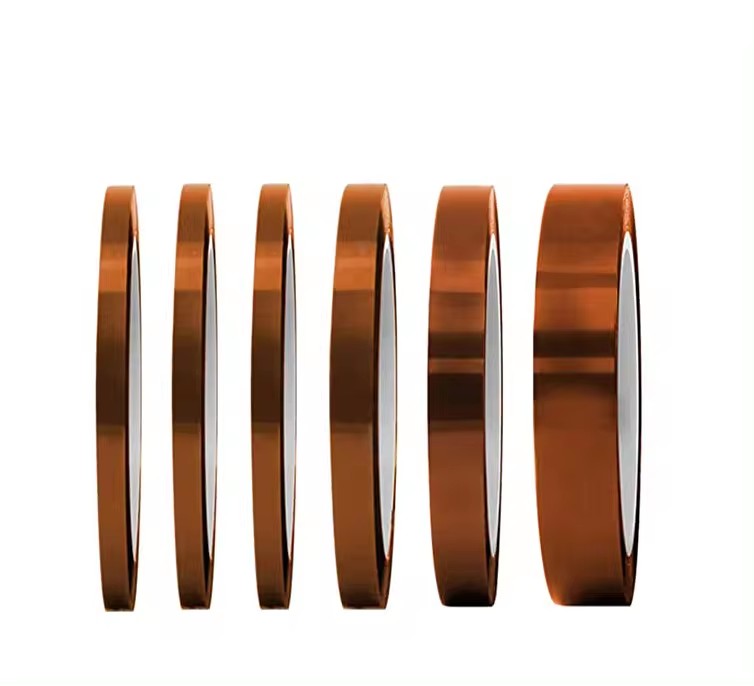

Polyimide Tape

@Polyimide tape is made of polyimide film single side coated with silicone adhesive. It is used in applications as high as 280°C temperature without glue and color residual.

– Color: Amber

– Thickness (mm): 0.03 | 0.035 |0.04 | 0.045 |0.05 | 0.055 | 0.06 | 0.07 | 0.08 | 0.1 | 0.12 | 0.15 | 0.18 | Custom

– Width (mm): From 1mm to 500mm | Custom

– Length (m): 33 | 50 | 66 | 100 | 200 | 500 | Custom

– Core Diameter(mm): 25 | 32 | 38 | 76 | Custom

– Packing Term: Label | OPP Bag | PVC Box | Carton | Custom

– Related Process: +Release Liner | Die Cutting | Custom

Kindly Note: Log roll and Jumbo roll are available.

Polyimide Tape Log Rollis a polyimide film backed silicone adhesive tape with excellent heat resistance and insulation properties.

Features And Benefits:

1. Electrical insulation and clean removal without residue.

2. Resistant high temperature up to 260℃ for 10 minutes.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.

Polyimide Tape Log Roll Application:

Here are some common applications of polyimide tape:

Electrical insulation: It is often used as an electrical insulation material due to its excellent dielectric properties and high temperature resistance. It can be used to wrap wires, cables, transformers, and other electrical components.
3D printing: It is used as a bed surface for 3D printing because it provides a smooth and stable printing surface that resists high temperatures.
Aerospace and aviation: It is used in the aerospace and aviation industries to protect wires and cables from heat, abrasion, and other environmental factors.
Automotive industry: It is used in the automotive industry for engine harness wrapping, brake hose wrapping, and other high temperature applications.
Masking: It is used as a masking tape in various industries, especially in electronic manufacturing, where it is used to mask gold fingers on circuit boards during soldering.
Thermal insulation: It is used as a thermal insulation material in high temperature applications such as furnace doors, heat exchangers, lithium battery, and boilers.
Powder coating: It is used as a high temperature masking tape, especially in powder coating industry.

Overall, polyimide tape is a versatile material that can be used in various industries for high temperature applications, electrical insulation, and masking.

Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.

Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.
