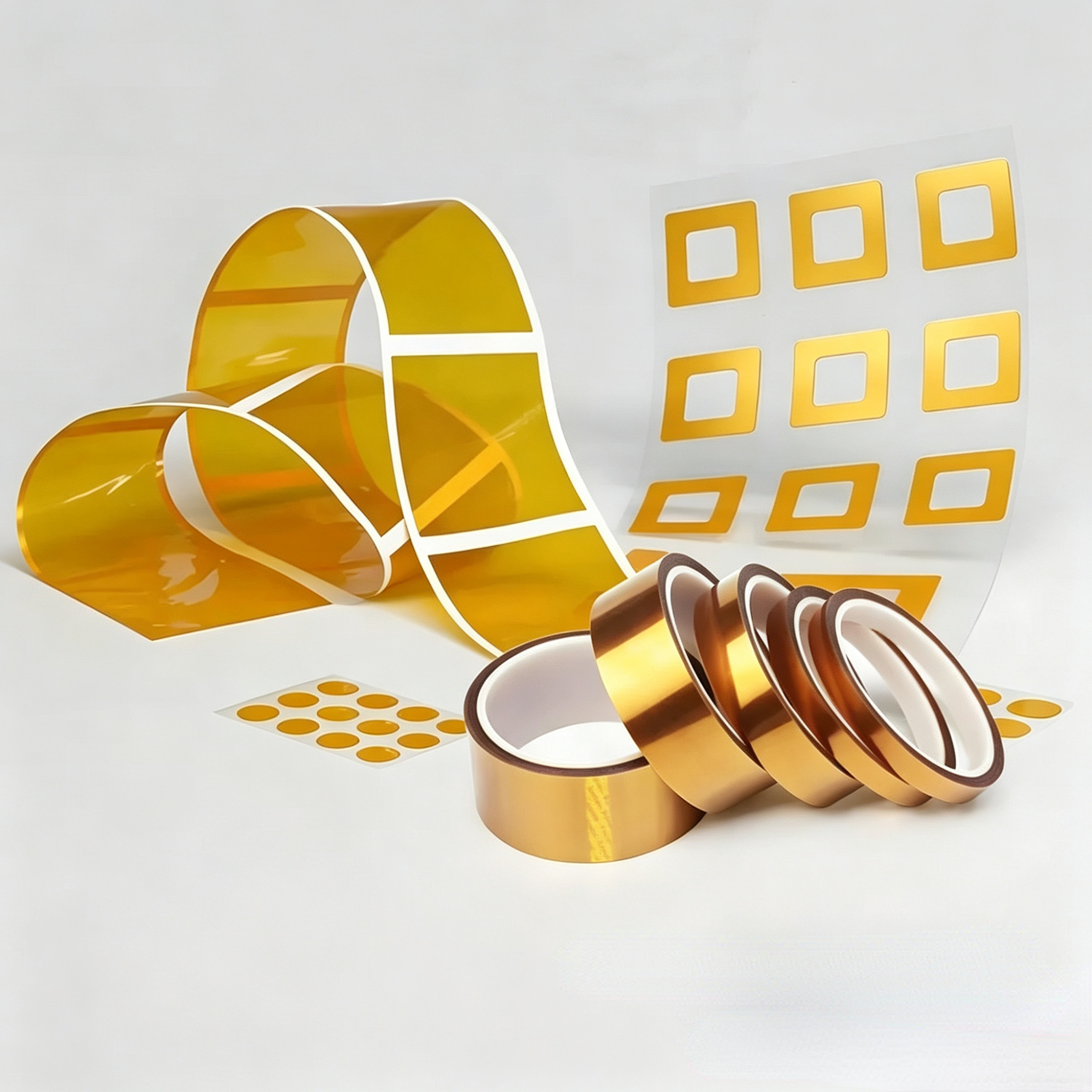

Die-Cut Polyimide Tape

Die-Cut High-Temperature Polyimide Tape

As a professional polyimide tape die-cutting manufacturer with two factories (Guangdong & Jiangxi), we specialize in custom die-cut solutions for high-temperature electronic applications. Our die-cut PI/Kapton tapes are ISO9001 certified, RoHS compliant, and widely used in transformers, motors, and PCB manufacturing. Offer free samples for quality verification.

This product is currently out of stock and unavailable.

📩 Contact for Price & MOQ
SKU: N/A Category:

Description

Our die-cut polyimide tape (also known as Kapton/Goldfinger tape) is precision-engineered for high-temperature insulation applications. Available in custom shapes, sizes, and thicknesses (0.025mm–0.2mm), our PI tape die-cut parts deliver stable performance up to 260°C with zero residue after peeling. Ideal for transformers, PCB masking, and electronic component bonding.

Specification Item
Details
Remarks
Product Name
Die-Cut High-Temperature Polyimide Tape
Kapton/Goldfinger Tape Die-Cut
Base Material
Polyimide Film (PI Film)
High insulation & heat resistance
Adhesive Type
Silicone / Acrylic Adhesive (Optional)
Silicone for high temp; Acrylic for general use
Temperature Range
Continuous: -190°C ~ +260°C; Peak: 300°C
Suitable for soldering, baking
Die-Cut Tolerance
±0.05mm (High Precision)
Customizable by shape
Thickness
0.025mm ~ 0.2mm (Optional)
Custom thickness available
Die-Cut Size & Shape
Customizable (Circles, Rectangles, etc.)
Width: 1mm ~ 500mm
Key Features
High Insulation, No Residue, Flame Retardant, Good Adhesion
Complies with electronic industry standards
Certifications
ISO9001, RoHS, REACH
Certificates on request
Application
Transformer Coil, PCB Solder Masking, Motor Coil
Widely used in electronic industry
